All-in-one Portable Nitrogen Gas Generator 550L/hr 1000L/hr 95%~99.5%
- Model
- SPN1001D, SPN1002D
Item specifics
- Brand
- Scala
- Nitrogen Purity
- 95%~99.5%
- Flow Rate
- 130~1000L/hr
- Voltage
- AC 220V/1PH/50Hz
- Power
- 750W, 1500W
- Ambient Temperature
- 0~40℃
- Noise
- ≤65dB(a)
Review
Description
Description

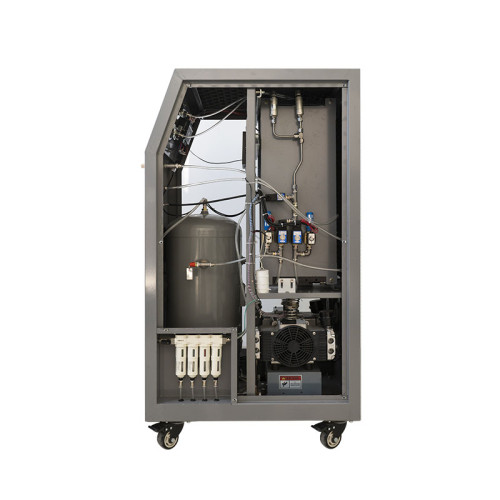

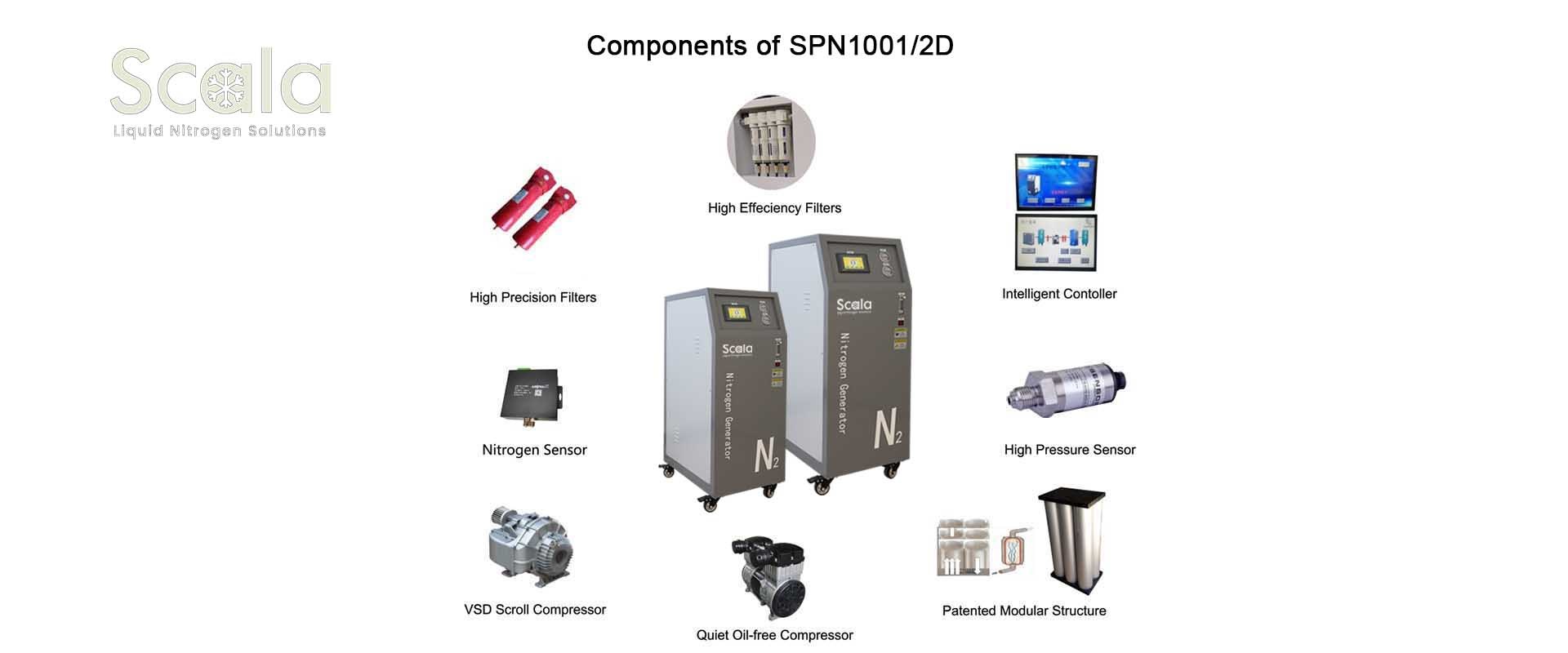

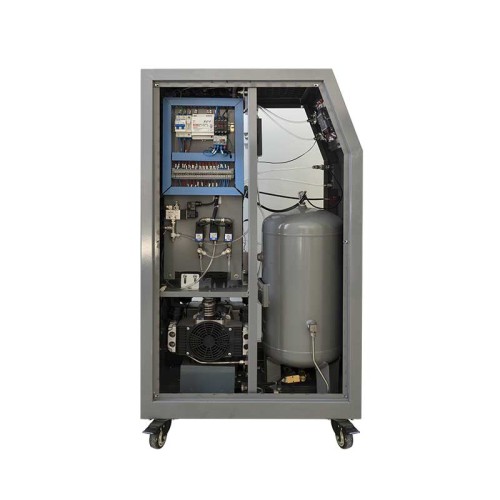

SPN1001/2D portable nitrogen generators is an independent all-in-one nitrogen generator. The models utilizes the all the necessary compents for nitrogen generation, including oil-free compressor, compressed air filtration & storage assembly, modular nitrogen generation unit, and intelligent controller of the whole system.
The series include two models, SPN1001D and SPN1002D, which can supply 95% nitrogen gas with 550 liters per hour and 1000 liters per hour flow rate. Both models are plug-and-play design and produce nitrogen gas immediately when plug in 220V electricity power, very suitable for users without stable compressed air supply.
Specifications
· Model no.: SPN1001D, SPN1002D
· Gas Type: Nitrogen (N2)
· Flow Rate: 130~1000 liters/hour
· Purity: 95% - 99.5%
· Oper. Temperature: +0℃~+40℃
· Voltage: 220V/1PH/50~60Hz
· Power: 600~800W
· Noise: ≤65dB(a)
Models and Technical Data
The NG nitrogne generator production rate varies under different working conditions and nitrogen purity requirements.
| Model | Dimensions(cm) | Power(W) | Nitrogen Flow Rate (Liters per Hour) | |||
99.5% | 99% | 97% | 95% | |||
| SPN1001D | 38x47x100 | 750 | 150 | 250 | 350 | 550 |
SPN1002D | 45x70x100 | 1500 | 350 | 550 | 800 | 1000 |
