PSA Nitrogen Generator High Purity 95%~99.999% 1~2000m³/hr
- Model
- HN4010~NH41000
Item specifics
- Brand
- Scala
- Nitrogen Pressure
- 5~8 barg
- Nitrogen Dew Point
- -40℃
- Nitrogen Purity
- 95% - 99.999%
- Flow Rate
- 1~2000m³/hr
- Voltage
- AC 220V/1PH/50Hz
- Power
- 200W
Review
Description
Description

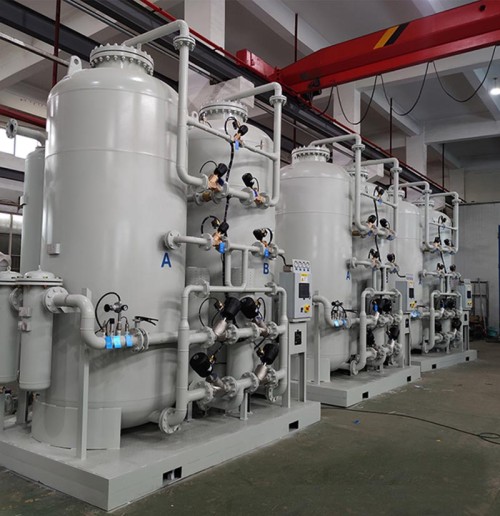

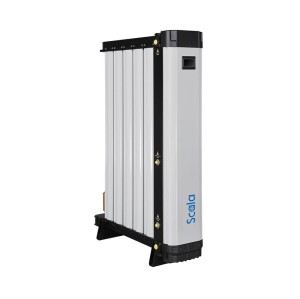

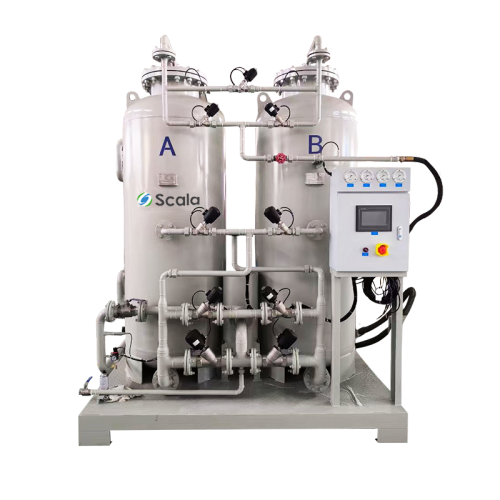

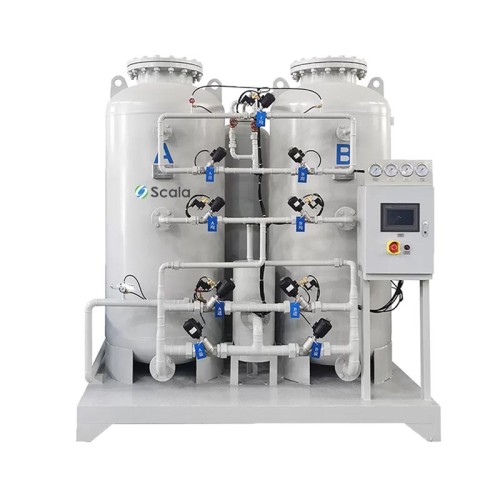

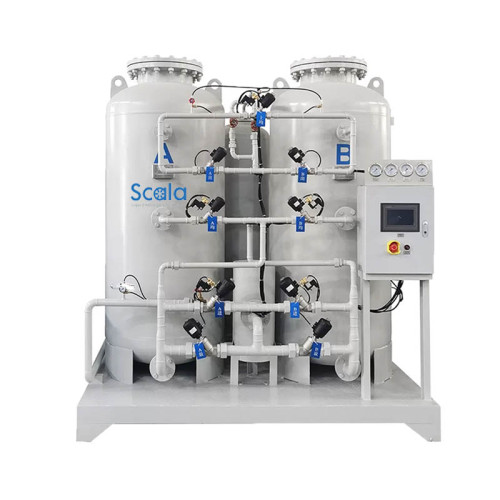

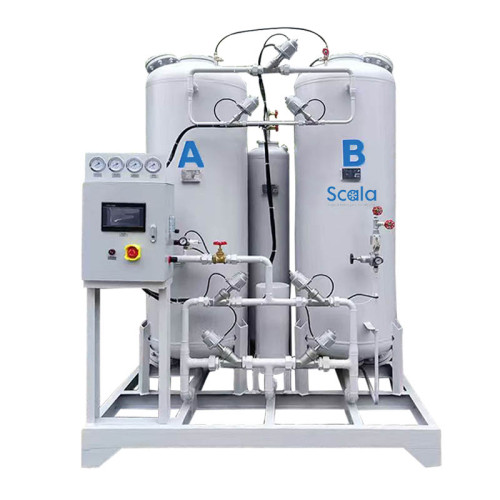

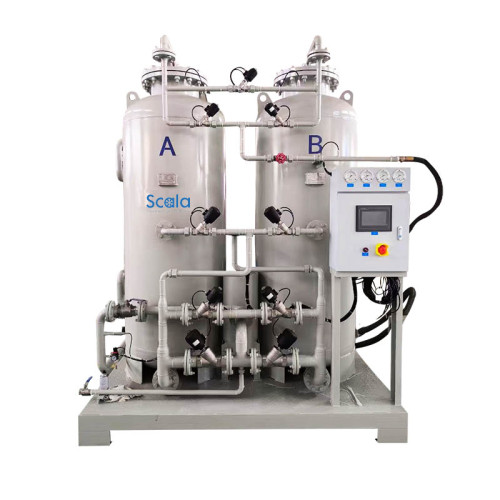

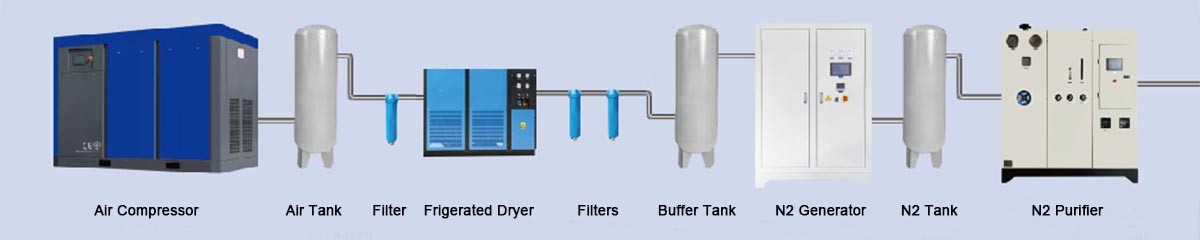

Nitrogen generator is based on the principle of PSA (Pressure Swing Adsorption) and uses the carbon molecular sieves as adsorbent. Under the certain pressure, the N2 can be separated from the air when the compressed air goes through the adsorption columns by the compressing and de-pressing. As O2 molecular moves faster than N2 in the carbon molecular sieves, and the oxygen molecular will be adsorbed first so the nitrogen moleculaar can be collected, which is nitrogen gas.
When nitrogen gas is released, the carbon molecular sieves would be de-pressed to release the oxygen molecular, which is called regeneration. Nomally, PSA nitrogen generator has two columns, one for adsoption and the other for regeneration. The system is controlled PLC and valves, so it can keep running without stopping.
Specifications
· Model no.: HN4010~HN41000
· Gas Type: Nitrogen (N2)
· Flow Rate: 1~2000 m3/hour
· Purity: 95% - 99.999%
· Compressed Air Pressure: 5~13 barg
· Compressed Air Quality: 8573-1:2010 Class 2.2.2
· Oper. Temperature: +5℃~+50℃
· Material: Carbon Steel
· Compressed Air Inlet: G 1''
· Nitrogen Outlet to Buffer: G 1''
· Nitrogen Inlet from Buffer: G 1/2''
· Nitrogen Outlet: G 1/2''
Models and Technical Data
The NG nitrogne generator production rate varies under different working conditions and nitrogen purity requirements.
| Model | FlowRate | Nitrogen Purity (Maximum Oxygen Content) | |||||||||||
| 10ppm | 50ppm | 100ppm | 200ppm | 500ppm | 0.1% | 0.5% | 1% | 2% | 3% | 4% | 5% | ||
99.999% | 99.995% | 99.99% | 99.98% | 99.95% | 99.9% | 99.5% | 99% | 98% | 97% | 96% | 95% | ||
| 0109 | Nm³/hr | 0.9 | 1.7 | 2 | 2.5 | 3 | 3.6 | 5.2 | 5.8 | 8.3 | 9.3 | 9.5 | 10 |
0209 | Nm³/hr | 1.8 | 3.4 | 4 | 5 | 6 | 7.2 | 10.4 | 12 | 15 | 16.7 | 19 | 21 |
0309 | Nm³/hr | 2.7 | 5.1 | 6 | 7.5 | 9 | 10.8 | 15.6 | 17 | 22 | 25 | 29 | 31 |
0115 | Nm³/hr | 2.5 | 3.6 | 4.5 | 5 | 5.7 | 6.6 | 9.5 | 10.5 | 13 | 15.2 | 17.5 | 19 |
0215 | Nm³/hr | 5.1 | 7.2 | 8.9 | 10 | 11.4 | 13.2 | 18.9 | 21 | 26 | 30.3 | 35 | 38 |
0315 | Nm³/hr | 7.7 | 10.8 | 12.6 | 15 | 17.1 | 19.8 | 28.4 | 32 | 40 | 45.5 | 52 | 56 |
0415 | Nm³/hr | 10.2 | 14.4 | 16.8 | 20 | 22.8 | 26.4 | 37.8 | 42 | 53 | 60.6 | 69 | 75 |
0515 | Nm³/hr | 12.7 | 18.1 | 21 | 25 | 30.3 | 33 | 47.2 | 52.5 | 66 | 75.7 | 86.5 | 94 |
0615 | Nm³/hr | 15.3 | 21.6 | 25.2 | 30 | 34.2 | 39.6 | 56.7 | 63 | 79 | 90.9 | 104 | 113 |
| 0715 | Nm³/hr | 17.8 | 25.2 | 29.4 | 35 | 39.9 | 36.2 | 66.1 | 73.5 | 92.5 | 105 | 121 | 131 |
0815 | Nm³/hr | 20.4 | 28.8 | 33.6 | 40 | 45.6 | 52.8 | 75.6 | 84 | 106 | 121 | 138 | 150 |
0816 | Nm³/hr | 21.8 | 30.8 | 35.9 | 42.7 | 48.7 | 56.4 | 80.7 | 89.7 | 113 | 129 | 147 | 160 |
1015 | Nm³/hr | 23.5 | 33.1 | 38.6 | 46 | 52.4 | 60.7 | 86.9 | 97 | 121 | 139 | 159 | 173 |
1016 | Nm³/hr | 25.1 | 35.3 | 41.2 | 49.1 | 55.9 | 64.8 | 92.8 | 103 | 129 | 148 | 170 | 184 |
1215 | Nm³/hr | 27.2 | 38.4 | 44.9 | 53.3 | 60.9 | 70.5 | 101 | 112 | 141 | 162 | 184 | 200 |
1216 | Nm³/hr | 29 | 41.1 | 47.8 | 56.9 | 65.2 | 75.3 | 107.6 | 119 | 150 | 173 | 196 | 213 |
The above flow rate and nitrogen purity is under compressed air at 7 barg inlet pressure and 20~25°C inlet temperature.
Dimension and Weight
| Model | Height (A) mm | Width (B)
mm | Depth (C) mm | Weight kg |
0109 | 1218 | 400 | 584 | 144 |
0209 | 1218 | 400 | 752 | 202 |
0309 | 1218 | 400 | 919 | 260 |
0115 | 1818 | 400 | 584 | 180 |
0215 | 1818 | 400 | 750 | 269 |
0315 | 1818 | 400 | 916 | 358 |
0415 | 1818 | 400 | 1082 | 447 |
0515 | 1818 | 400 | 1248 | 536 |
0615 | 1818 | 400 | 1414 | 625 |
| 0715 | 1818 | 400 | 1580 | 714 |
| 0815 | 1818 | 400 | 1746 | 803 |
| 0816 | 1918 | 400 | 1746 | 843 |
1015 | 1818 | 400 | 2078 | 981 |
1016 | 1918 | 400 | 2078 | 1031 |
1215 | 1818 | 400 | 2410 | 1159 |
1216 | 1918 | 400 | 2410 | 1219 |
