175L Large Volume Biological Sample Cryogenic Container -196℃ Liquid Nitrogen Tank
- Model
- SYDS-175-216
Item specifics
- Material
- Aluminum
- Color
- Ivory
- Treatment
- Powder-coating
- Capacity
- 175L
- Type
- Storage Container
Review
Description
Introduction

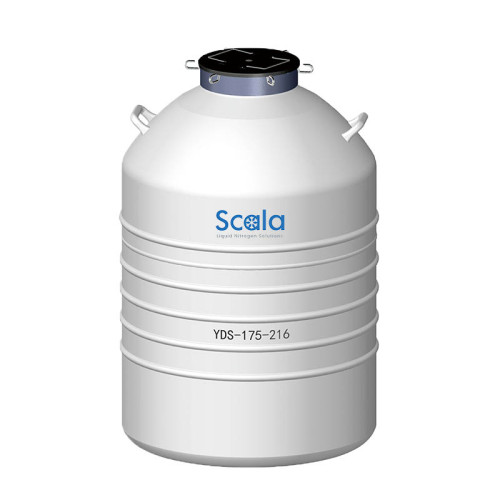

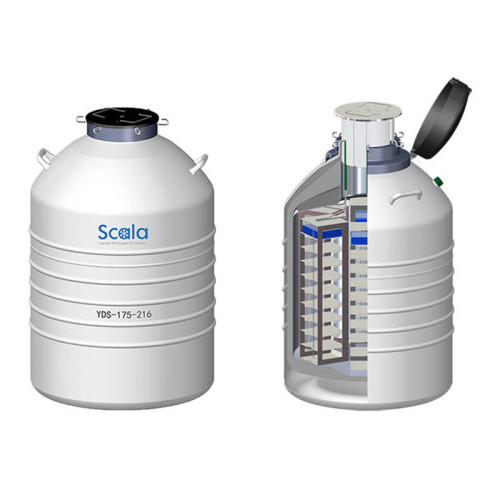

SYDS-175-216 is large liquid nitrogen sample container for gas phase preservation of large quantity biological samples or semens.
With 175 liters volume, it can preserve up to 6,000 ampoules and easily opearation with 217mm mouth opening.
Made of high-strength, corrosion-resistant aluminum alloy, the liquid nitrogen container is portable with extended storage time over 5 years. It can work typically when the tanks are scratched or deformed due to improper operation.
|
Model
|
SYDS-175-216 |
|
Capacity
|
175 liters |
|
Net Weight
|
55.2 kg |
|
Opening Size
|
217 mm |
Outer Diameter | 691 mm |
Height | 1083 mm |
Natural Evaporation Rate | 0.95 liter/day |
Static Storage Duration | 184 days |
Rack Diameter | 142×144 mm |
Standard Rack QTY | 6 ea |
Ampoule Capacity | 6000 |

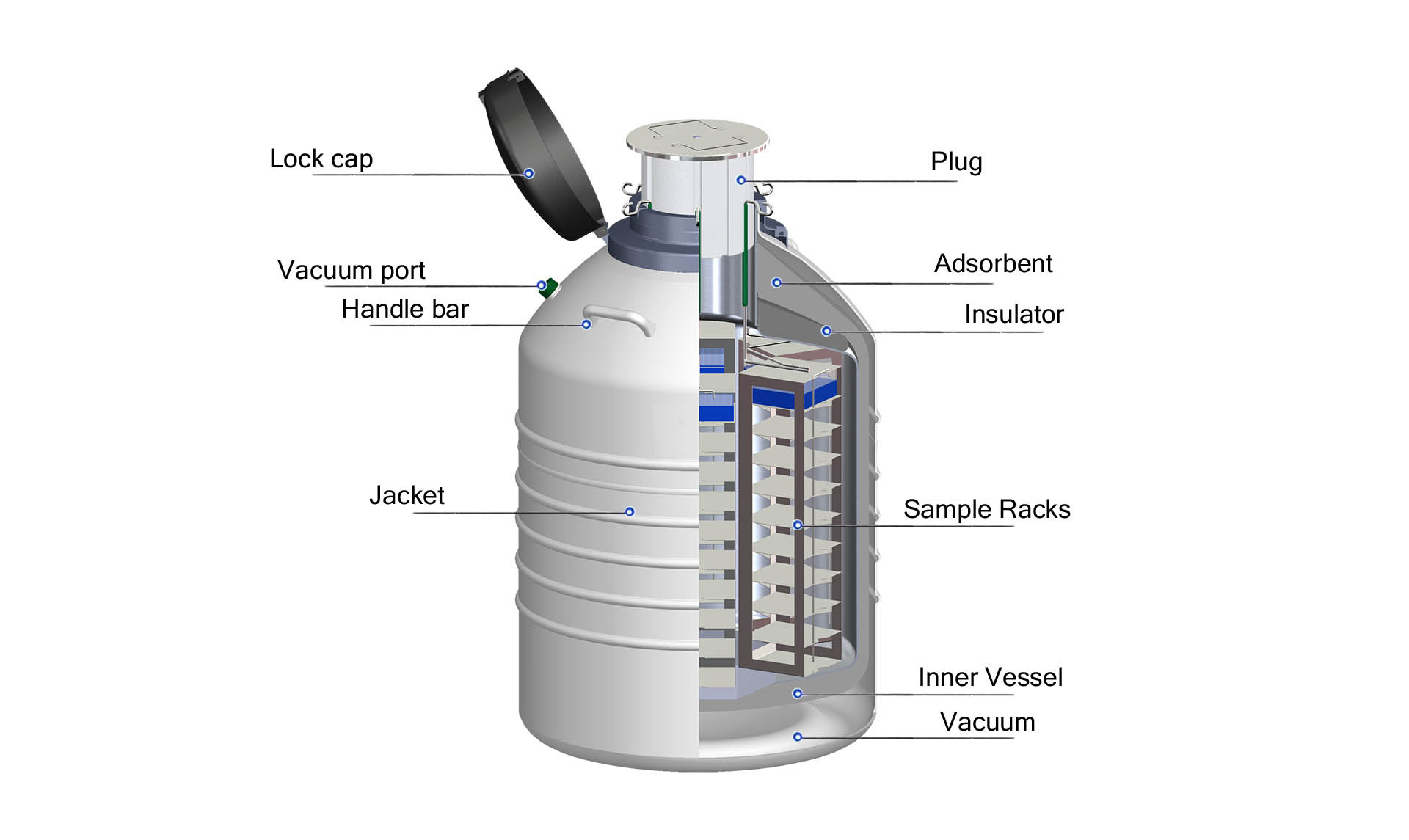

Scopy of Supply
|
Component
|
Material | QTY |
|
Liquid nitrogen container
|
Aluminum alloy | 1 |
|
Ampoule racks
|
Stainless steel | 6 |
|
Lock cover
|
HDPE | 1 |
Capping plug | PU foam | 1 |
Sheath | Three-layer | 1 |
