Model
SYDS-65-216

Item specifics

Material
Aluminum
Color
Ivory
Treatment
Powder-coating
Capacity
65L
Type
Storage Container

Review

Description

Introduction

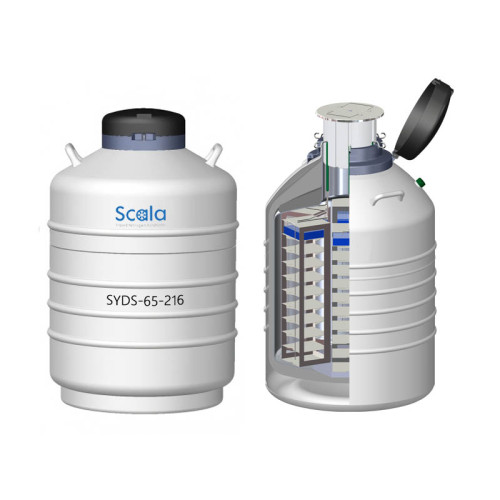

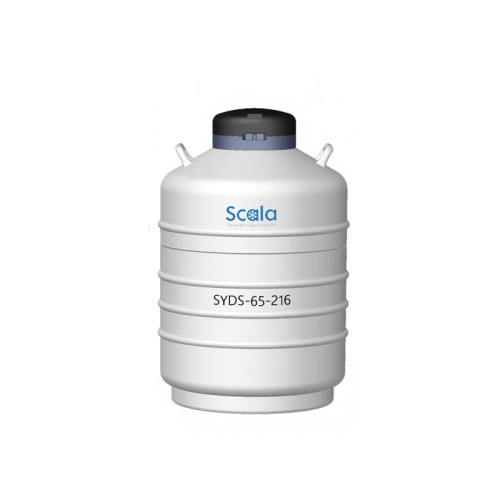

SYDS-65-216 is large liquid nitrogen sample container for gas phase preservation of large quantity biological samples or semens.

With 65 liters volume, it can preserve up to 2,400 ampoules and easily opearation with 217mm mouth opening.

Made of high-strength, corrosion-resistant aluminum alloy, the liquid nitrogen container is portable with extended storage time over 5 years. It can work typically when the tanks are scratched or deformed due to improper operation.
features_structure_liquid nitrogen container_liquid nitrogen tank_ln2 dewar_ln2 sample container_cryogenic container_biological sample container

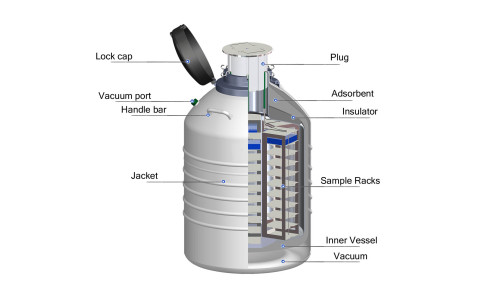

structure_liquid nitrogen container_liquid nitrogen tank_ln2 dewar_ln2 sample container_cryogenic container_biological sample container
features_liquid nitrogen container_liquid nitrogen tank_ln2 dewar_ln2 sample container_cryogenic container_biological sample container
Model
SYDS-65-216
Capacity
65 liters
Net Weight
34.4 kg
Opening Size
217 mm
Outer Diameter
592 mm
Height
772 mm
Natural Evaporation Rate
0.89 liter/day
Static Storage Duration
73 days
Rack Diameter
142×144 mm
Standard Rack QTY
4 ea
Ampoule Capacity
2,400

Scopy of Supply

Component
Material
QTY
Liquid nitrogen container
Aluminum alloy
1
Ampoule racks
Stainless steel
4
Lock cover
HDPE
1
Capping plug
PU foam
1
Sheath
Three-layer
1
