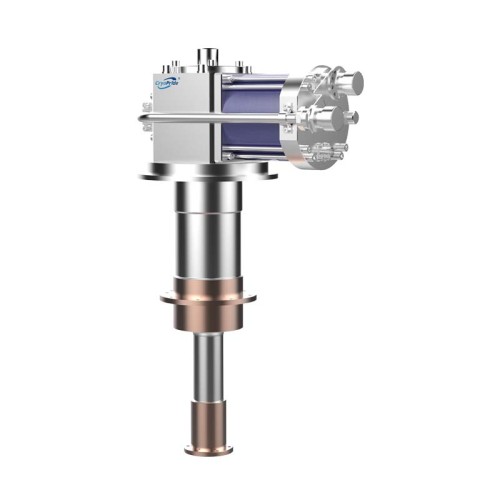

KDE210SA 2-Stage 10K GM Cryocooler 5W @ 10K GM Coldhead

Model: KDE210SA

Item specifics

Application: Hydrogen Liquefaction

Cooling Capacity (50Hz): 5W 10K

Lowest Temperature: <8K

Power Consumption (50Hz): <7.2 kW

Cooling Type: Water Cold

Cool down Time (1st stage): 60min (< 20K)

Weight: 17.8 kg

Review

Description

KDE210SA is a high-performance two-stage Gifford-McMahon (GM) cryocooler designed to provide continuous closed-cycle refrigeration at temperatures down to 8 K. Featuring 5 W cooling capacity at 10 K and proven long-term reliability, it is widely used in cryogenic research, superconducting applications, cryopumps, helium purification, and custom low-temperature systems.

Specifications

Model No.	KDE210SA (10K)
Brand	Pride
Lowest Temperature	< 8K
Cooling Capacity (50Hz)	1st Stage	2nd Stage
	40W @ 45K	5W @ 10K
Cool down Time	60min
Weight	Coldhead	Compressor
	17.8 kg	118 kg
Compatible Helium Compressor	KDC6000V
Power Consumption (50Hz)	Steady	Cooldown
	6.5kW	7.2kW
Cooling Type	Water-cold
Cooling Water Requirement	> 7 L/min
Standard Flexline	20A×20m
Maintenance Interval	Coldhead
	18 month
Warranty Period	1 Year

Working & Storage Conditions

Item	Operating	Storage
Ambient Temperature	4~40 ℃	-20~65 ℃
Relative Humidity	30%~70%	0%~90% (Requiring No-condensing)
Ambient atmospheric pressure	70kPa~110kPa	20kPa~110kPa
