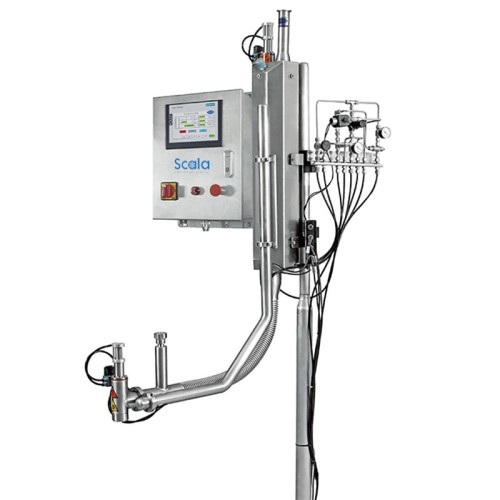

SVBS-300 Liquid Nitrogen Doser 3rd Generation Liquid Nitrogen (LN2) Dosing System LN2 Doser
- Model
- SVBS-300
Item specifics
- Brand
- Scala
- Product Series
- SVBS
- Medium
- Liquid Nitrogen
- Liquid Nitrogen Pressure
- 3 - 22 psi
- Gaseous Nitrogen
- 60 - 100 psi
- Head Pressure
- 0.45 psi (0.03 bar)
- Electricity
- 110-240VAC; 50/60Hz
- Power
- 110W
- Material
- SS304
Review
Description
Description
The SVBS-300 is the most advanced 3rd generation liquid nitrogen (LN2) dosing system utilizing advanced cryogenic technology and PLC programming.
The SVBS-300 uses three sensors to detect the conveyor line's speed, timing, and bottle presence, making it suitable for both low-speed and high-speed production lines. It significantly improves the synchronization accuracy between the system and the conveyor line, enabling precise injection of liquid nitrogen (LN2) into each container. The injected liquid nitrogen instantly vaporizes, generating internal pressure that enhances the container's stacking load capacity while displacing oxygen inside, thereby inerting the product's headspace.
How It Works
Liquid nitrogen is supplied to the SVBS-300 by a standard 10ft (3mt) vacuum insulated liquid nitrogen hose (various lengths available) and flows into the dosing head. A 24vdc PNP sensor detects the speed of the line (encoder compatible for higher speeds); a second 24vdc PNP sensor detects the presence of a container. When a container is detected, the dosing head opens and dispenses an exact amount of pure liquid nitrogen. The whole system is contolled by PLC, sensors and HMI.
Features
· Flexiable Arm – enables flexiable dosing angle and position.
· Quick Service for Auto Defrost – auto defrost in 3 minutes.
· Micro-dosing Technology – consistent and precise liquid nitrogen dosing in various line speed.
· Discrete Dosing – up to 800 containers per minute (controller dependant).
· Discrete or Continuous Dosing – user-adjustable mode speed switching.
· Vacuum Insulated Technology – the most efficient use of liquid nitrogen.
· Soft Dose Compatible – Scala's proven technology for hotfill, powder, and granular applications.
Benefits
• Lightweight PET – reduce the weight of PET for cost and environmental savings
• Glass to PET Transition – eliminate glass safety hazards and weight of containers
• Bottle Rigidity – maintain bottle shape even with lighter bottle wall
• Eliminate Paneling – increase the internal pressure to offset paneling issues
• Oxygen Reduction – create an inert environment to preserve product freshness
• Extend Shelf Life – minimize oxygen levels
• Ease of Labeling – consistent bottle rigidity creates labeling convenience
• Reduce Nitrogen Consumption – measurable and repeatable liquid doses
• Maximize Warehouse Storage Space – increasing product stackability utilizes less square footage
• Stabilize Organic Products – extend shelf life without preservatives
Specifications
| Model | SVBS-300 |
| Weight | 17kg (38lb) |
| Dimension | 724x152mm |
| Dosing Head Dimension | 241x50.8mm |
| Arm Reach | 609.6 ~ 863.6mm |
Nozzles | 0.020'' ~ 0.120'' Available |
Ship with 0.040" , 0.050", 0.060" | |
Liquid Nitrogen | 3 ~ 22 psi |
Gaseous Nitrogen | 60 ~ 100 psi |
Electricity | 110~240VAC; 50/60Hz |
Power | 110W |
Steady State Consumption | 0.04 gal (0.2 liter) / hour |
Auto Defrost | Yes |
Vacuum Insulated | Yes |
Flexible Arm | Yes |
SoftDose Compatible | Yes |
Controller
| Dimension | 19.8"H x 7.8"D x 12.3"W (503 x 198 x 312 mm) | |
| Weight | 22.5 lbs (10.2 kg) | |
| PLC Platform | Siemens | |
| Dosing Range | 0.5 - 12g/second | |
Time Range | 7 to 1 000 ms (in 1ms intervals) | |
Encoder Compatible | Yes | |
Discrate Dosing | 800 cpm | |
Line Speed Auto Detect | Yes | |
Speed Compensated Mode | Yes | |
Electronic Dose Targeting | Yes | |
Fixed Delay Mode | Yes | |
Accuracy | ± 2% of dose value | |
Multiple Language | Yes | |
Recipe Storage | Yes | |
Certification | CE, NEMA 4X, IP65 | |
