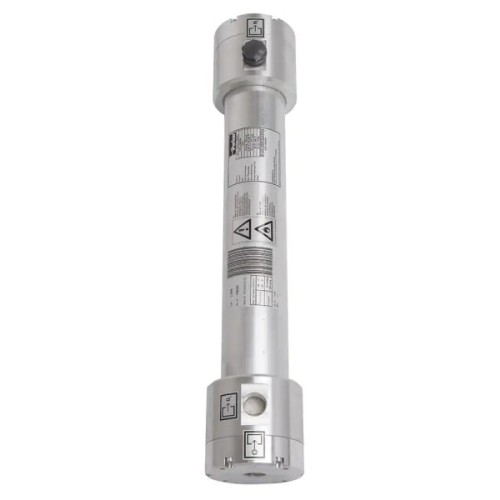

Parker Nitrogen Membrane Module HIFLUXX ST608 5.8 m3/hr @ 7 bar - 97% purity
- Model
- ST608
Item specifics
- Brand
- Parker
- Product Series
- HiFluxx
- Working Pressure
- 4~12 barg (58~174 psig)
- Maximum Operating Pressure
- 13 barg (189 psig)
- Operating Temperature
- +2℃ to +50℃ (+36°F to +122°F)
- Maximum Air Inlet Temperature
- 50 °C, 122 °F
- Nitrogen Purity
- 95% - 99%
Review
Description
Description
HiFluxx ST608 membrane modules for producing nitrogen gas at pressures up to 12 barg from a standard compressed air supply and provides nitrogen gas of 95% to 99,5% equivalent nitrogen purity. The hollow-fibre Nitrogen membrane modules produce nitrogen gas from compressed air to offer a cost-effective, real time nitrogen supply.
HiFluxx ST608 enable you to make nitrogen enriched air out of normal pure ambient air with nitrogen gas flow rate 5.8 m3/hour @ 97% purity at7 bar condition. Air is composed of nitrogen (78,1%), oxygen (20.9%), argon (1%) and some traces of other inert noble gasses. Parker ST608 membrane modules are capable of separating oxygen from air, thus producing nitrogen enriched air.
Specifications
· Model no.: HiFluxx ST608
· Gas Type: Nitrogen (N2)
· Flow Rate: 5.8 m3/hour @ 97% (7 bar)
· Purity: 95% - 99%
· Part no.: 159.003309 / 159003309
· Max. Oper. Pressure: 13.0 bar g (189 psi g)
· Oper. Temperature: +2℃~+50℃ / +36°F~+122°F
· Material: Aluminum
· Inlet/Outlet Port Size: G3/4” female
· Weight: 5.3 kg, 11.7 lb
· Dimension: 736 x Ø114 mm (29.0'' x 4.49'')
Performance Data
The HiFluxx DT604 production rate varies under different working conditions and nitrogen purity requirements.
| Purity % | Nitrogen flow rate in m3/hr | ||||
| 99.0 | 98.0 | 97.0 | 96.0 | 95.0 | |
| 4 bar g | 1.34 | 2.25 | 3.07 | 3.87 | 4.82 |
5 bar g | 1.67 | 2.81 | 3.84 | 4.84 | 6.02 |
6 bar g | 2.14 | 3.72 | 4.99 | 6.84 | 7.91 |
7 bar g | 2.49 | 4.34 | 5.82 | 7.56 | 9.23 |
8 bar g | 2.85 | 4.96 | 6.65 | 8.65 | 10.6 |
9 bar g | 3.36 | 5.81 | 7.85 | 10.0 | 12.2 |
10 bar g | 3.56 | 6.21 | 8.32 | 10.8 | 13.2 |
11 bar g | 4.01 | 6.96 | 9.56 | 12.2 | 14.9 |
| 12 bar g | 4.46 | 7.71 | 10.6 | 13.5 | 16.6 |
Maximum pressure drop <0.3 bar (4 psi)
Maximum nitrogen flow rate = minimum flow rate + 30%
Common Variation Models
The most common variation modeles of Parker HiFluxx ST608 are listed below.
Please contact us for other models with different purity requirements.
| ST608-950-07-A-00A | HiFluxx ST608 95%N2 at 7 bar |
| ST608-950-10-A-00A | HiFluxx ST608 95%N2 at 10 bar |
| ST608-960-09-A-00A | HiFluxx ST608 96%N2 at 9 bar |
| ST608-970-07-A-00A | HiFluxx ST608 97%N2 at 7 bar |
ST608-970-10-A-00A | HiFluxx ST608 97%N2 at 10 bar |
ST608-980-07-A-00A | HiFluxx ST608 98%N2 at 7 bar |
ST608-980-08-A-00A | HiFluxx ST608 98%N2 at 8 bar |
ST608-990-07-A-00A | HiFluxx ST608 99%N2 at 7 bar |
