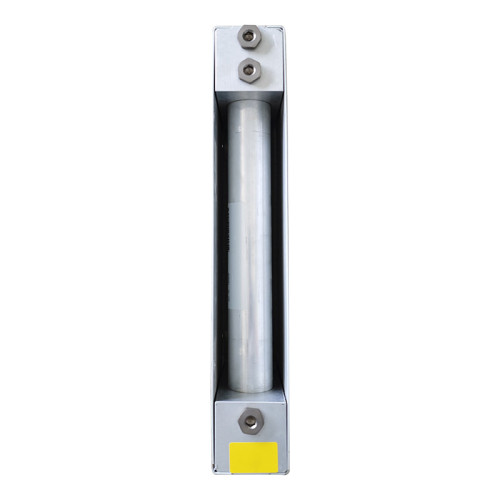

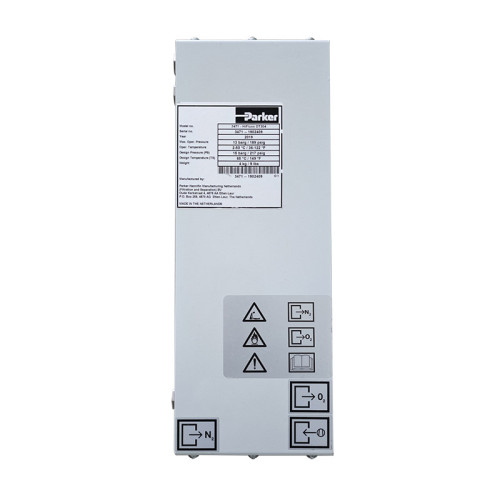

Parker HiFluxx Nitrogen Gas Membrane Module DT304
- Model
- DT304
Item specifics
- Brand
- Parker
- Product Series
- HIFLUXX
- Maximum Operating Pressure
- 10 barg (145 psig)
- Operating Temperature
- +2℃ to +45℃ (+36°F to +113°F)
- Design Temperature
- +45℃ (+113°F)
- Maximum Air Inlet
- 50 °C, 122 °F
- Oxygen Content
- 0.5 to 5 %, 1 to 5 %
Review
Description
Description
Nitrogen membrane modules enable you to make nitrogen enriched air out of normal pure ambient air. Air is composed of nitrogen (78,1%), oxygen (20.9%), argon (1%) and some traces of other inert noble gasses. DT304 membrane modules are capable of separating oxygen from air, thus producing nitrogen enriched air.
The Parker HiFluxx DT304 nitrogen membrane modules are designed to separate nitrogen gas from compressed air. This model provides an continuous source of nitrogen gas which can be used in a wide range of industries including food, beverage, pharmaceutical, laboratory, chemical, heat treatment, electronics, transportation, oil & gas, mining and marine.
Specifications
· Model no.: HiFluxx DT304
· Gas Type: Nitrogen (N2)
· Flow Rate: 1.9 m3/hour @ 97% (7 bar)
· Purity: 90% - 99.5%
· Serial no.: 159.003471 / 159003471
· Max. Oper. Pressure: 13 barg / 189 psig
· Oper. Temperature: +2℃~+50℃ / +36°F~+122°F
· Design Pressure: 15 barg / 217 psig
· Design Temperature: +65℃ / 149°F
· Material: Aluminum
· Weight: 4kg / 9 lbs
Common Variation Models
The most common variation modeles of Parker HighFluxx DT304 are listed below.
Please contact us for other models with different purity requirements.
| DT304-950-07-A-00A | HiFluxx DT304 95%N2 at 7 bar |
| DT304-980-07-A-00A | HiFluxx DT304 98%N2 at 7 bar |
| DT304-990-05-A-00A | HiFluxx DT304 99%N2 at 5 bar |
| DT304-990-08-A-00A | HiFluxx DT304 99%N2 at 8 bar |
