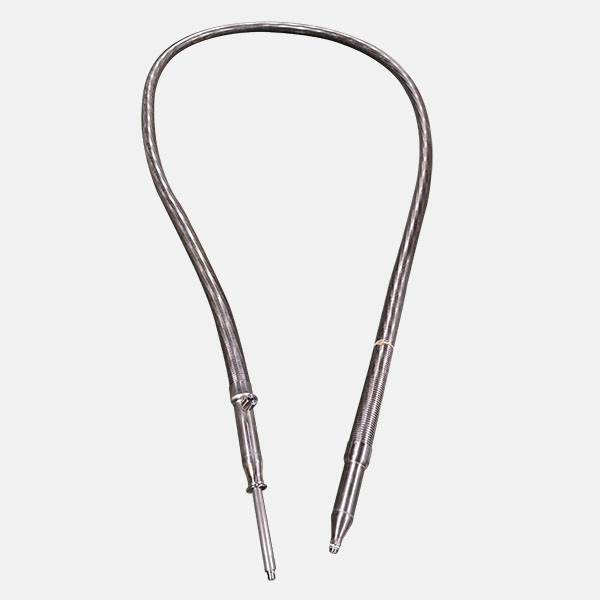

Liquid Nitrogen Hose in Beverage Industry Spiral Wrap Liquid Nitrogen Vacuum Jacketed Transfer Hose DN15
Liquid Nitrogen Hose in Beverage Industry Spiral Wrap Liquid Nitrogen Vacuum Jacketed Transfer Hose DN15
Liquid Nitrogen Hose in Beverage Industry Spiral Wrap Liquid Nitrogen Vacuum Jacketed Transfer Hose DN15
Liquid Nitrogen Hose in Beverage Industry Spiral Wrap Liquid Nitrogen Vacuum Jacketed Transfer Hose DN15
Model
DN15

Item specifics

Product Name
Liquid Nitrogen Transfer Pipeline
Outer Diameter
50.00mm
Inner Diameter
15.9mm
Insulation Method
High-vacuum insulation
Material
High-strength stainless steel
Medium
Liquid nitrogen
Place of origin
China
Length
1-10m

Review

Description

Description
liquid nitrogen hose_liquid nitrogen transfer hose_cryogenic transfer hose_vacuum insulated hose_flexiable liquid nitrogen hose_liquid nitrogen pipe

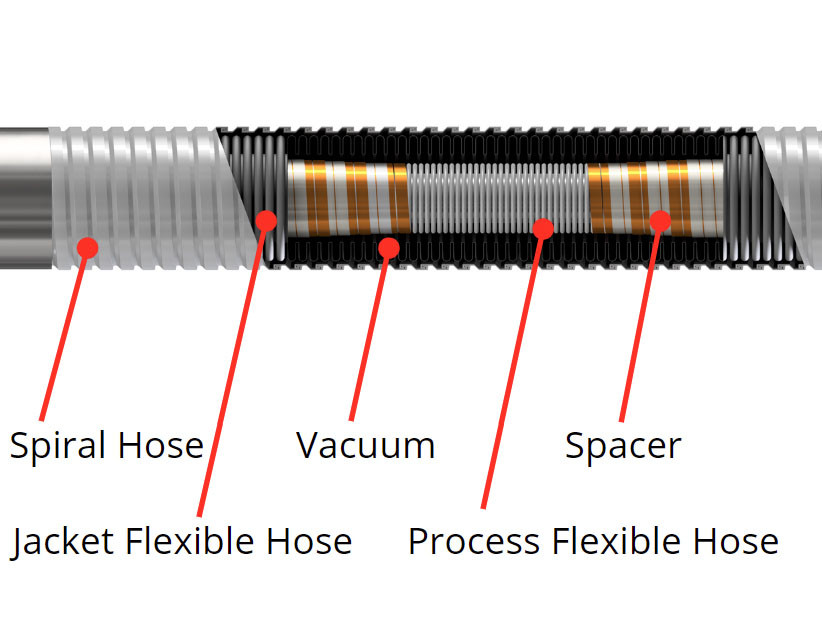

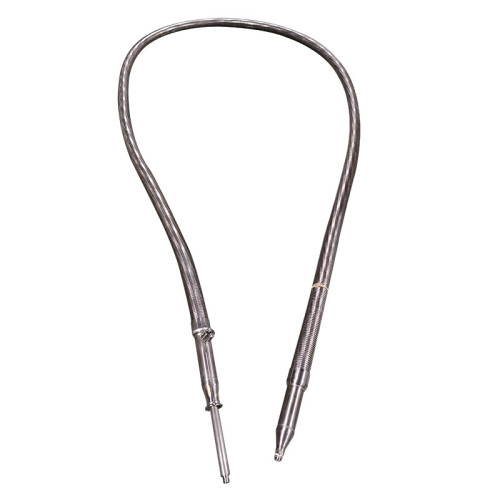

Static Vacuum Insulated Hose

The static vacuum insulated hose is manufactured from 304 stainless steel, evacuated to a high vacuum of 10-6 mbar (10-4 Pa) with a vacuum pump. The hose is in modular structure and connected with vacuum genderless blade connectors.

The flexible hoses offer superior flexibility, allowing for easy maneuverability and installation in various cryogenic environments.

Designed for safe and reliable transfer of liquid nitrogen, the hose is an ideal solution for industries requiring high-quality and safe LN2 transfer.

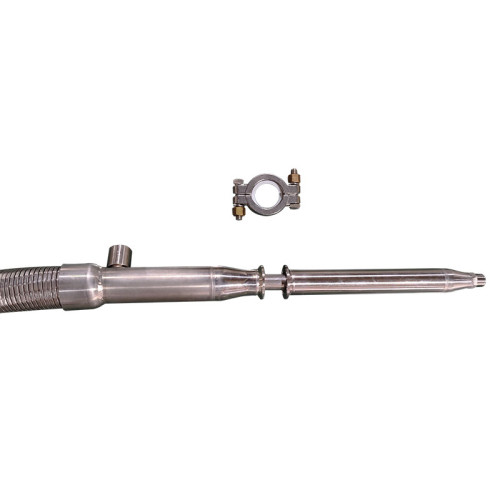

Bayonet Connection
liquid nitrogen hose_liquid nitrogen transfer hose_cryogenic transfer hose_vacuum insulated hose_flexiable liquid nitrogen hose_liquid nitrogen pipe

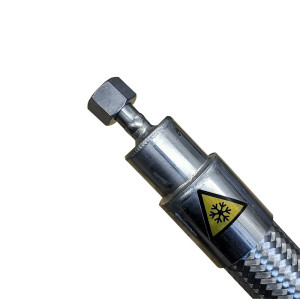

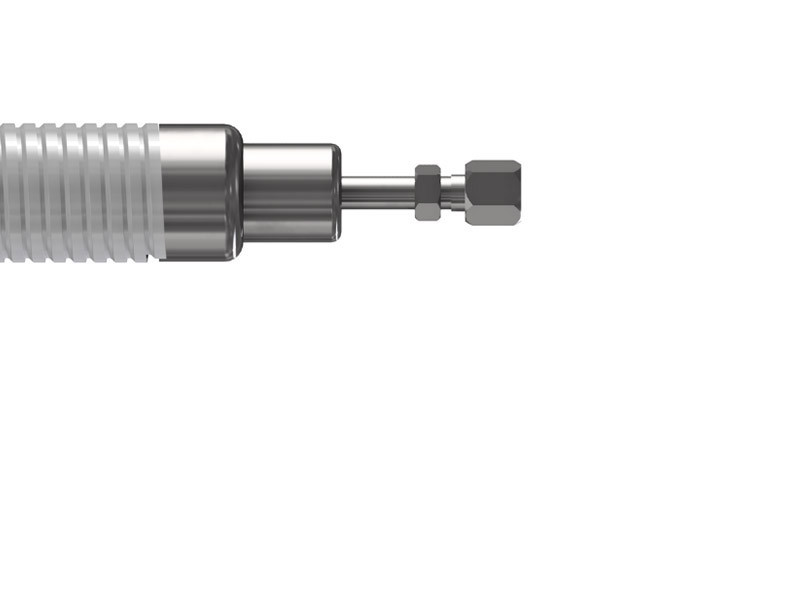

Female Connector

liquid nitrogen hose_liquid nitrogen transfer hose_cryogenic transfer hose_vacuum insulated hose_flexiable liquid nitrogen hose_liquid nitrogen pipe

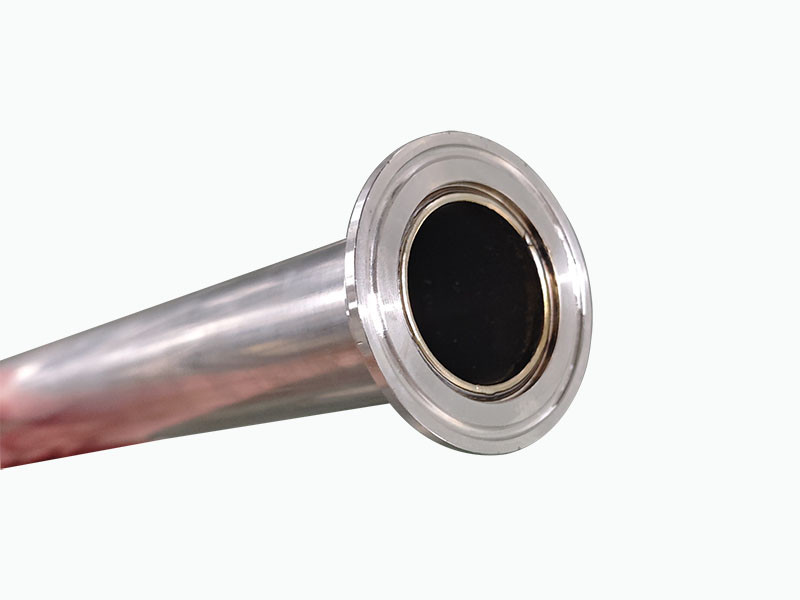

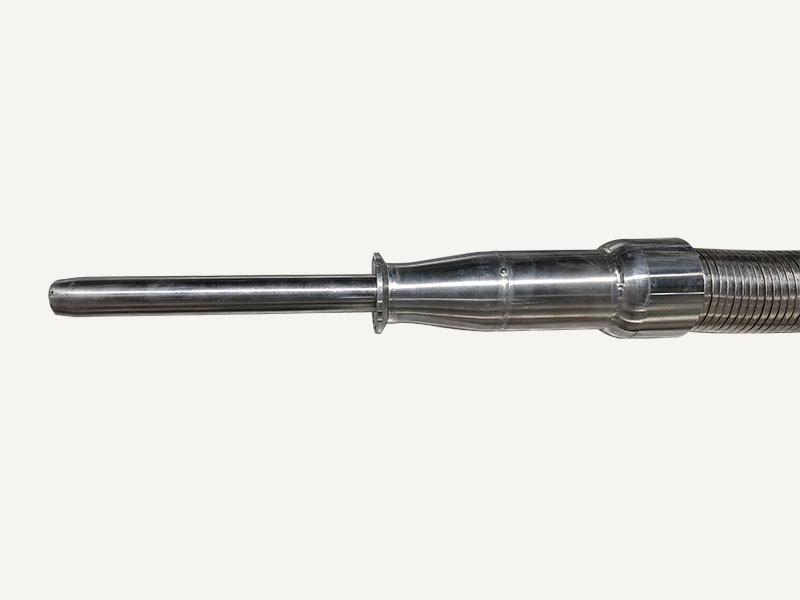

Male Connector
liquid nitrogen hose_liquid nitrogen transfer hose_cryogenic transfer hose_vacuum insulated hose_flexiable liquid nitrogen hose_liquid nitrogen pipe

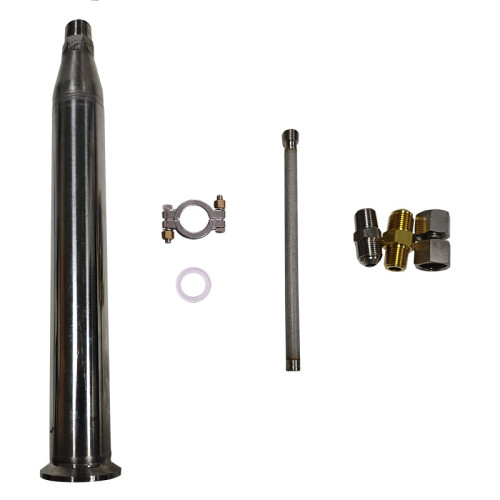

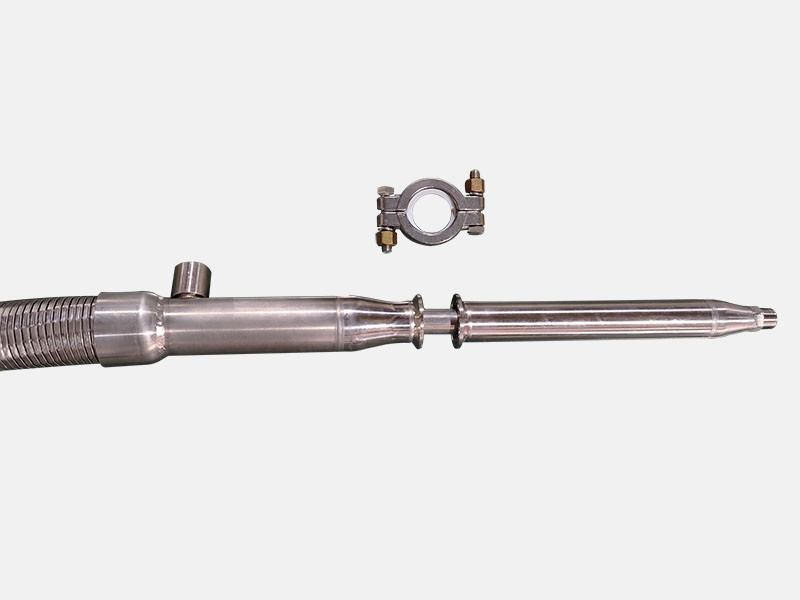

Connection and Clamp

Specifications
Model
DN15
Inner Diameter
0.625”(15.9mm)
Outer Diameter
1.8”(50.00mm)
Hose Heat Loss
1btu/hr/ft(0.80watts/meter)
Connector Heat Loss
6btu/hr(1.5watts)
Max Pressure
200psi(13.8bar)
Working Temperature
-196ÿ°C
Mateiral
SS304
Testing Standard
Helium leak detection, vacuum retention, liquid nitrogen shock

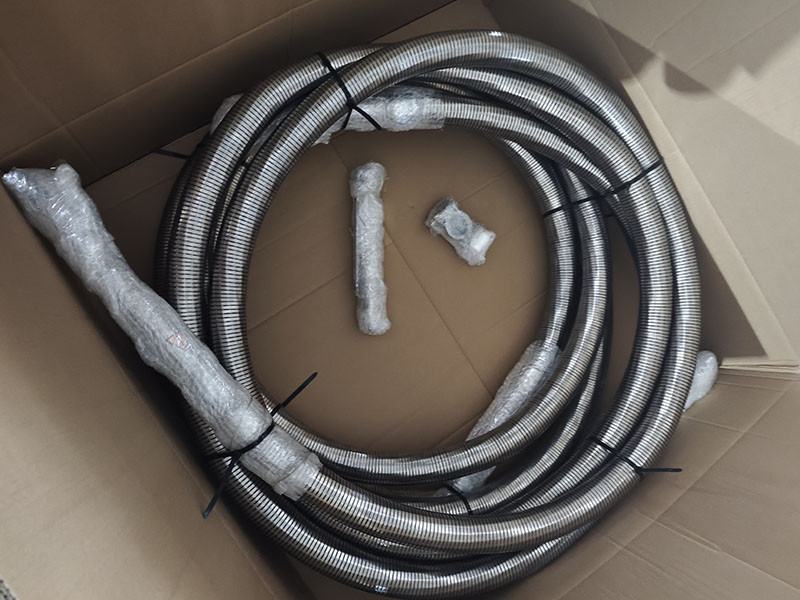

Packaging And Shipping
