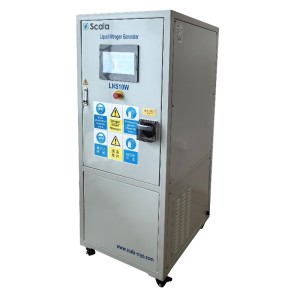

On-site liquid nitrogen generator, 99.999% purity, 10L/day, PLC, 10'' HMI screen, 4G & WiFi
- Model
- LNS10A
Item specifics
- Color
- Blue
- Cabinet
- Steel
- Production Capacity
- ≥10L/day (≥0.42L/Hour)
- Lead time
- 4-6 weeks
- Dimension
- (L) 60 x (W) 80 x (H) 170cm
- Weight
- 260kg
- Power comsuption
- 1.7kw
Review
Description
LNS10A is a plug-and-play liquid nitrogen generator. Controlled by PLC, liquid nitrogen can be produced within several hours at a touch of screen without complicated operation.
Based on advanced pluse tube cryo-cooler technique, the production rate will not be significantly decreased overtime. Combined with our innovative PSA nitrogen system, the generators can be used for many years with minimum maintenance requirement and cost.
With built in capacitance liquid level gauge, you can set liquid level to start/stop automatically on touch screen panel.
Advanced Pulse Tube Cryo-cooler, 100,000H life span
Innovative PSA High Purity Nitrogen Generator
Build-in 35L Dewar with Liquid Level Indicator
Filtration System only Clean LN2 Liquified
10'' HMI Color Screen, Remote Access and Control
Emergency Stop Button to Ensure Safty Operation
- Easy Operation: One-click start/stop liquid nitrogen generation; One-click to dispense liquid nitrogen automatically; Compact machinery and installation free.
- On-Site Production: Plug-and-play, eliminating the need for storing or transporting ensures a continuous and reliable nitrogen supply.
- High Purity: 99.5% to 99.999%, suitable for a wide range of industrial and laboratory applications.
- Safe and Reliable: No helium compressor or refrigerant compressor means no gas leakage risk.
- Minimal Maintenance: Advanced pluse tube cryo-cooler, over 120,000 hours continuous running without interruption.
- Cost Effective and Environmental: Modern PSA systems minimize energy consumption results in lower operating costs and environmental impact.
- Small Footprint: Easily transported or relocated, portable at different job sites, offering greater flexibility in operations.
- Intelligent: HMI touch screen with WiFi function, enables remote control and monitor; PLC control, automatic produce and standby according to liquid level.
|
MODEL
|
LNS10A
|
|
Production Rate
|
≥10L/day (≥0.42L/Hour)
|
|
Liquid N2 Pressure
|
0-1bar
|
Liquid N2 Dewar Capacity | 35L |
|
Operating Temperature
|
+5℃ ~ +32℃
|
Nitrogen Purity | 99.5-99.999% |
Maintenance Interval | >100,000Hours |
Noise Level | <60dBA @1Meter |
Power Consumption | 1.7Kw |
Electrical Supply | 220V/1PH/50Hz |
Maximum Altitude | 3,000M |
Dimension | (L) 60 x (W) 80 x (H) 170cm |
Approximate Weight | 260Kg |
- Finished the payment we hope you can send us the copy, then we can check it with bank and arrange the production as soon as possible.
- After delivery, if by sea we will send you all the document such as invoice, packing list, bill of loading, certification by Email. If by EPXRESS, we will send you the tracking No for you check on the website.
- Any other questions, welcome to send us email.
