On-site liquid nitrogen generator, 99.999% purity, 10L/day, PLC, HMI touch screen, 4G & WiFi
On-site liquid nitrogen generator, 99.999% purity, 10L/day, PLC, HMI touch screen, 4G & WiFi
On-site liquid nitrogen generator, 99.999% purity, 10L/day, PLC, HMI touch screen, 4G & WiFi
On-site liquid nitrogen generator, 99.999% purity, 10L/day, PLC, HMI touch screen, 4G & WiFi
Model
LNS10W

Item specifics

Color
Beige
Cabinet
Steel
Production Capacity
≥10L/day (≥0.42L/Hour)
Lead time
4-6 weeks
Dimension
(L) 60 x (W) 80 x (H) 170cm
Weight
260kg
Current
9.5-11.5A

Review

Description

Description
Liquid_Nitrogen_Generator_LNS10W_WiFi_HMI

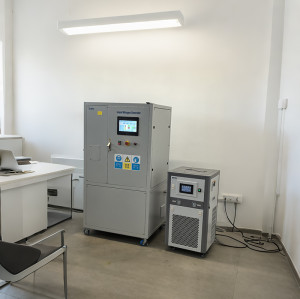

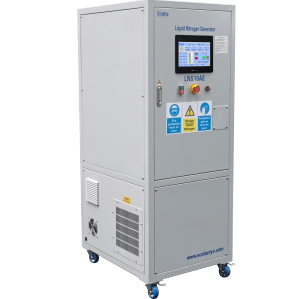

LNS10W - Your On-site Liquid Nitrogen Solution

LNS10W is a plug-and-play liquid nitrogen generator. Controlled by PLC, liquid nitrogen can be produced within several hours at a touch of screen without complicated operation.

Based on advanced pluse tube cryo-cooler technique, the production rate will not be significantly decreased overtime. Combined with our innovative PSA nitrogen system, the generators can be used for many years with minimum maintenance requirement and cost.

With built in capacitance liquid level gauge, you can set liquid level to start/stop automatically on touch screen panel.

Features
pulse_tube_cryocooler

Advanced Pulse Tube Cryo-cooler, 100,000H life span

99.5-99.999%_purity

Innovative PSA High Purity Nitrogen Generator

C-Stic_liquid_level_sensor

Build-in 35L Dewar with Liquid Level Indicator

Nitrogen_gas_purification

Filtration System only Clean LN2 Liquified

HMI_touch_screen

10'' HMI Color Screen, Remote Access and Control

Emergency_stop

Emergency Stop Button to Ensure Safty Operation

VEDIO
Competitive Advantages
  • Easy Operation: One-click start/stop liquid nitrogen generation; One-click to dispense liquid nitrogen automatically; Compact machinery and installation free.
  • On-Site Production: Plug-and-play, eliminating the need for storing or transporting ensures a continuous and reliable nitrogen supply.
  • High Purity: 99.5% to 99.999%, suitable for a wide range of industrial and laboratory applications.
  • Safe and Reliable: No helium compressor or refrigerant compressor means no gas leakage risk.
  • Minimal Maintenance: Advanced pluse tube cryo-cooler, over 120,000 hours continuous running without interruption.
  • Cost Effective and Environmental: Modern PSA systems minimize energy consumption results in lower operating costs and environmental impact.
  • Small Footprint: Easily transported or relocated, portable at different job sites, offering greater flexibility in operations.
  • Intelligent: HMI touch screen with WiFi function, enables remote control and monitor; PLC control, automatic produce and standby according to liquid level.
Technical Data
MODEL
LNS10W
Production Rate
≥10L/day (≥0.42L/Hour)
Liquid N2 Pressure
0-1bar
Liquid N2 Dewar Capacity
35L
Operating Temperature
+5℃ ~ +32℃
Nitrogen Purity
99.5-99.999%
Maintenance Interval
>100,000Hours
Noise Level
<60dBA @1Meter
Power Consumption
1.7Kw
Electrical Supply
220V/1PH/50Hz
Maximum Altitude
3,000M
Dimension
(L) 60 x (W) 80 x (H) 170cm
Approximate Weight
260Kg
After-sales Guarantee
  • Finished the payment we hope you can send us the copy, then we can check it with bank and arrange the production as soon as possible.
  • After delivery, if by sea we will send you all the document such as invoice, packing list, bill of loading, certification by Email. If by EPXRESS, we will send you the tracking No for you check on the website.
  • Any other questions, welcome to send us email.
