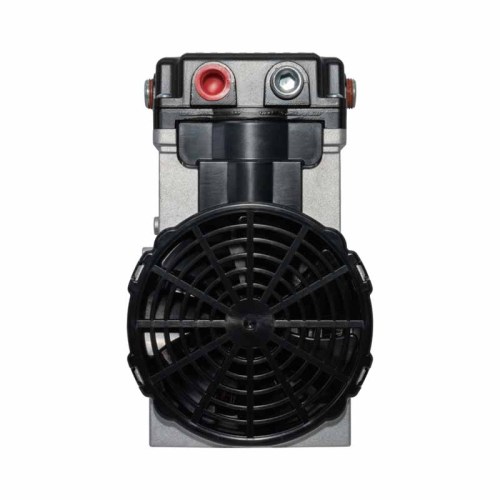

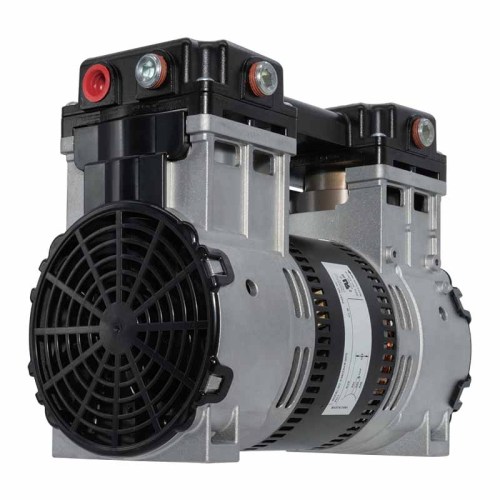

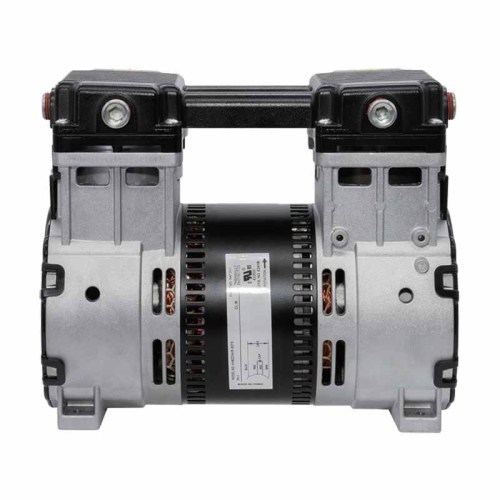

GAST 88R552 Oil-free Rockingpiston Compressor for Nitrogen Generator
- Model
- 88R552-P401-N472NX
Item specifics
- Brand
- GAST
- Max pressure
- 12 bar (175 PSI)
- Air flow @ 10bar
- 45 LMP @ 50Hz / 51 LMP @ 60Hz
- Rate voltage
- AC 220-230V, 50Hz / 220-230V, 60Hz
- Power
- 0.53 @ 50Hz / 0.62 @ 60Hz
- Normal ambient
- 0~40℃
- Noise
- ≤70dB(A)
Review
Description
INTRODUING
GAST 88R Oil-less
Rocking Piston Compressor
Powerful, Quiet, Reliable
The GAST 88R was engineered for performance across the board air flow, sound reduction, and longevity.
It provides more air flow while reducing sound levels vs. the 71R555. It also boasts an impressive 16,000 hours of bearing life and 6,000 hours of cup life.
POWERFUL PERFORMANCE
The 88R delivers impressive performance -70LPM and a maximum pressure of 175 psi.
EXTREME DURABILITY
The 88R is built to last with 16,000 hours of bearing life and 6,000 hours of cup life.
QUIET OPERATION
The 88R builds on GAST's reputation for quiet performance by comparing with other high pressure air compressor on the market.
DEPENDABLE DELIVERY
The 88R minimizes supply chain constraintswith a streamlined design optimized aroundreadily available internal components.
Leading technologies
Industry-leading Sound Shield Technology
Cuts Noise without Compromising Performance
Reduces sound levels and perceived loudness pump and compressor without affecting performance, resulting in a quieter, more comfortable working environment
Pump and Air Compressor Noise Reduction
Sound Shield delivers up to 17% reduction in perceived loudness at maximum pressure compared to a standard Gast pump.
Minimal Effect on Compressor or Pump Performance and Life
GAST 88R compressor or pump upgraded with Sound Shield technology maintains 95% of the airflow of a standard model.
Reduce Hassle and Complexity
Sound Shield eliminates the need to source, purchase, and install additional sound reduction components such as foam insulation, mufflers, covers, or cabinets.
Simple Installation
Sound Shield technology was designed to be retrofitted in the field or at our facility. All parts are kitted—down to the screws—and installation takes as little as four steps using common tools.
Rocking Piston Technology
High-pressure, Oil-free Air in Compact Designs
Gast's rocking piston technology offers a unique combination of performance and versatility, making it invaluable across diverse industries. Operating without oil lubrication, these compressors deliver clean, contaminant-free air—crucial for sectors like food processing, pharmaceuticals, and electronics. Their compact design and quiet operation make them ideal for space-constrained or noise-sensitive environments, such as medical facilities and laboratories. Despite their small footprint, these compressors achieve higher pressure outputs than others, ensuring strong and consistent air pressure for demanding applications.
Built for reliability and efficiency, Gast's rocking piston technology is capable of continuous operation, providing uninterrupted performance for critical tasks. The energy-efficient design contributes to long-term cost savings, while the ability to connect multiple units in parallel offers redundancy for enhanced system reliability. From powering dental tools and airbrushes to supporting environmental monitoring equipment, these versatile compressors deliver the precision and consistency needed across various applications.
Installation dimensions
Performance attribute
| 88R552-P401-N472NX | ||
| Max Continuous Pressure | 175 PSI | 12 Bar |
Air Flow@10Bar | 1.59 CFM@50Hz 1.8 CFM@60Hz | 45 LPM@50Hz 51 LPM@60Hz |
Amps@10Bar | 2.5@50Hz / 2.8@60Hz | |
Rated Voltage | 220-230,50Hz / 220-230,60Hz | |
Power | 0.53kW@50Hz / 0.62kW@60Hz | |
CAPACITOR | mfd. 17.5 / VOLTS 450 | |
Sound Level | < 70dB(A) | |
Normal Ambient | 0 C ~ +40 C | |
Environment | Clean, dust free | |
Certificate | CE | |
Length | 9.54 Inch | 242.3 mm |
Width | 5.00 Inch | 126.9 mm |
Height | 8.09 Inch | 205.6 mm |
Weight | 21 lb | 9.5 Kg |
Product perforance - 220V
