SYDP-C Automatic Liquid Nittrogen Pump 0~2L/min LN2 Pump LN2 Dispenser
- Model
- SYDP-C
Item specifics
- Operating Voltage
- 21.6~26.4V
- Operating Current
- ≤5A
- Liquid Output
- ≤1.9L/min
- Discharge Time
- 8s
- Evaporation Rate
- 0.994L/day
- Emergency Pressure Relief
- 50kPa
Review
Description
Automatic Liquid Nitrogen Pump
Compared to traditional liquid nitrogen pumps, SYDP-C Liquid Nitrogen Pump offers advantages such as stable liquid nitrogen output and controllable flow rate. It adjusts pressure to control the liquid output flow rate, maintaining a constant and steady discharge. The pump comes with real-time liquid level display, low liquid level alarm, prohibition of discharge at low liquid levels, real-time pressure display, high-pressure alarm, pressure compensation, over-temperature protection, emergency pressure relief and RS-485 communication interface, allowing convenient integration with other products.
Parameter
Model No: | SYDP-C |
Working mode: | RS485, Current Signal, Manual |
Head Lift: | 5 meters |
Liquid Output: | 0~1.9 liters/min |
Working voltage: | 24V |
Operating Current: | 5A |
Pressure Stability Error: | ±0.2kPa |
Pressure Adjustable Range: | 0~30kPa |
Liquid Level Error: | ±2cm |
Backup Battery Duration: | 14 days |
Structure

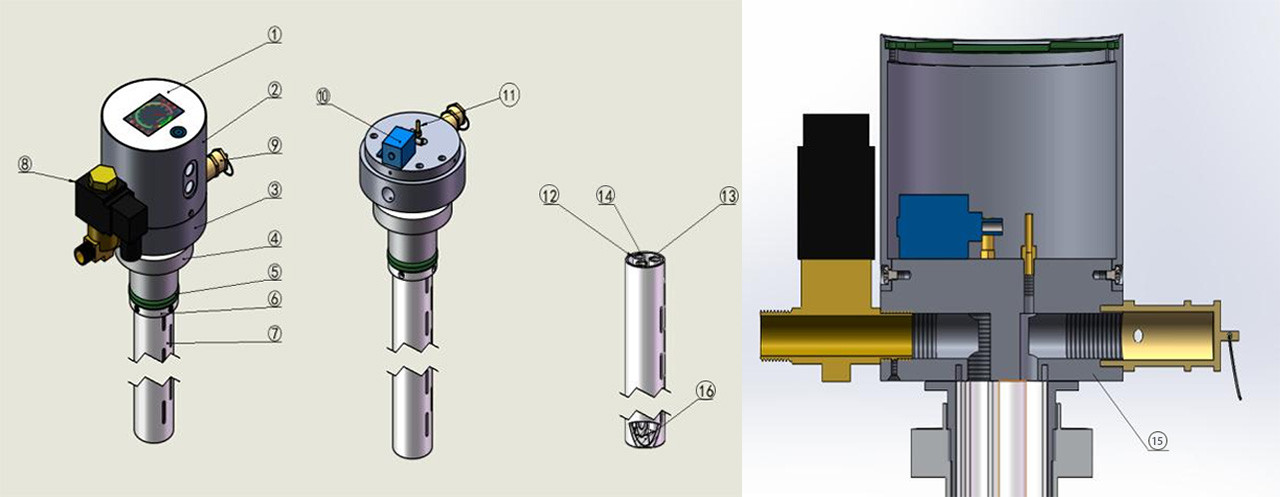

SYDP-C liquid nitrogen pump consists of the following parts: the panel, pump head, seals, inlet rod and housing, thermal management system, valves and sensors. The key components - the cryogenic pump head, the thermally isolated drive mechanism, and the robust sealing system - are all designed to operate across a temperature gradient of over 200°C while managing the phase change from liquid to gas.
Part 1 | Part 2 | Part 3 | Part 4 | Part 5 | Part 6 | Part 7 | Part 8 |
Panel | Terminal Port | Base | Lock Thread | Seal Ring | Retention | Shaft Housing | Solenoid Valve |
Part 9 | Part 10 | Part 11 | Part 12 | Part 13 | Part 14 | Part 15 | Part 16 |
Safety Valve | Pump Head | Nozzle | Supporter | Sensor | Inlet Tube | Flange | Retaining Plate |
Features
Advantages
- One-click interface for liquid nitrogen pumping.
- 0~2.35L/Min flow rate adjustable.
- Steady flow with real-time pressure monitor.

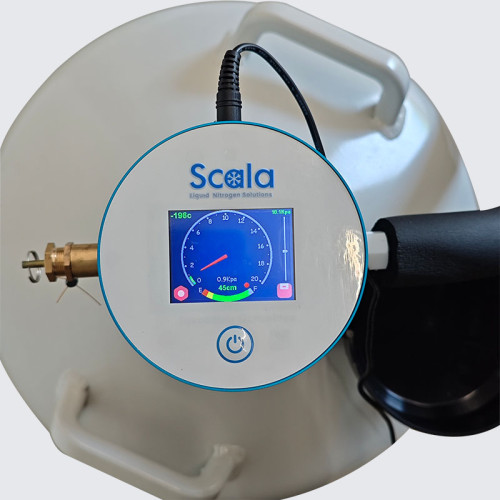

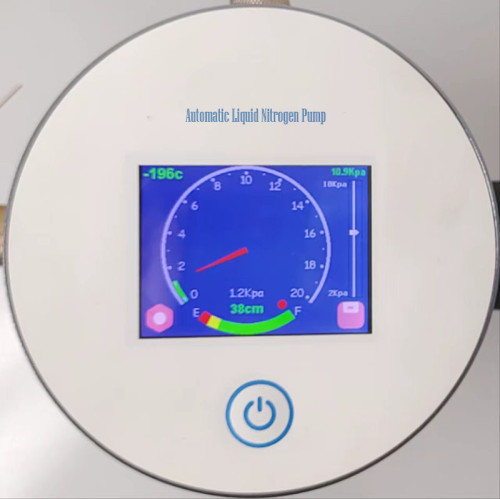

- Real-time liquid nitrogen level display.
- Real-time liquid nitrogen temperature monitor.
- Ultra-low cryogenic solenoid valve for instant and precise liquid nitrogen control.
- 4-20mA (0-10V) external analog signal for flow rate control.
- RS-485 RS485 Modbus Interface for automatic liquid nitrogen refill.
- Scheduled and measured fluid replenishment, with adjustable replenishment cycle and repetition count.
- Liquid level and temperature curve with software for precise monitor.
- Auto alarm for low liquid level and abnormal.
Download
Video
How To Install And Oparate SYDP-C Liquid Nitrogen Pump
Oparate SYDP-C Liquid Nitrogen Pump
